Product Details
Place of Origin: China
Brand Name: Calin
Certification: CE/SABS/IEC
Model Number: CA168-I
Payment & Shipping Terms
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 30 days
Payment Terms: western Union,Paypal, T/T, L/C
Supply Ability: 70,000pcs per month
Product Name: |
Low Price Sinlgle Phase Prepaid Electric Meter |
Neutral: |
Measuring Neutral |
Dimensions: |
255x120x52mm |
Weight: |
600 G |
Indicator: |
LED |
Accuracy: |
Class 1s |
Pulse Rate: |
1600 |
Bore Diameter: |
8mm |
Product Name: |
Low Price Sinlgle Phase Prepaid Electric Meter |
Neutral: |
Measuring Neutral |
Dimensions: |
255x120x52mm |
Weight: |
600 G |
Indicator: |
LED |
Accuracy: |
Class 1s |
Pulse Rate: |
1600 |
Bore Diameter: |
8mm |
Certainly! Here's an English summary of the key points from the provided text:

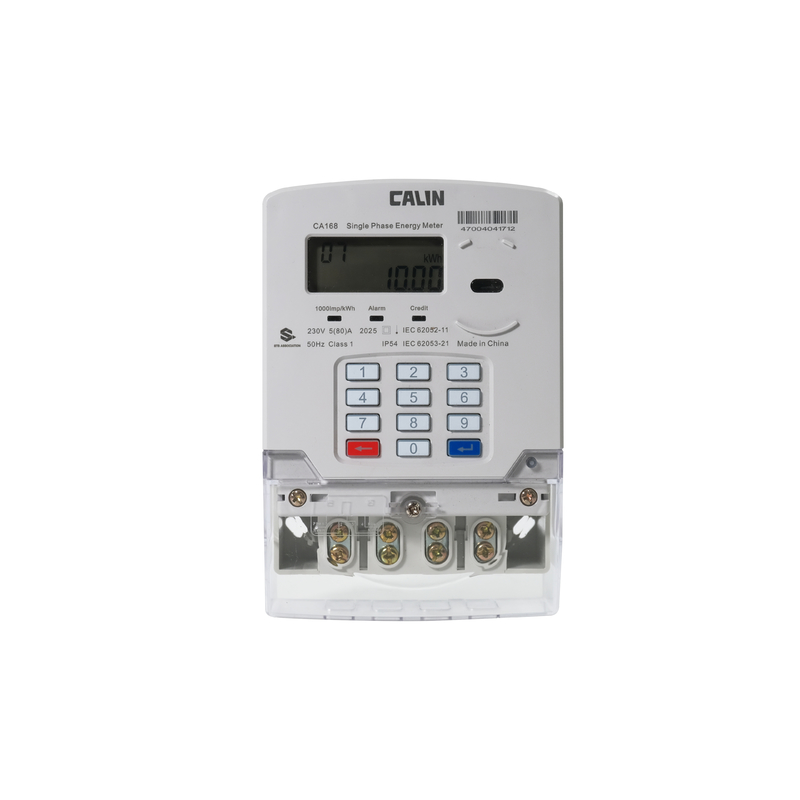

Product Overview: The CA168-I is an entry-level, low-cost single-phase prepayment electric meter.
Main Features:
Equipped with a built-in contactor or load switch that disconnects at preset power thresholds, credit expiry, and tampering.
Designed for low-income residential environments.
Rich in features, supporting bidirectional and neutral measurement, multi-rate and tariff plans.
Data exchange with interrogation kit via an infrared optical port.
Technical Specifications:
Single-phase two-wire setup.
Compact British Standard 5685 footprint mounting housing made of fire-retardant polycarbonate.
Robust RF withstand immunity of 30Vm, suitable for harsh environments.
Safety Features:
Tamper detection capabilities, detecting cover opening, reverse connection, and missing neutral, with load disconnection upon tampering.
Application Advantages:
An ideal revenue protection tool for utilities and service providers.
Convenient credit dispenser for consumers.
This summary encapsulates the essential aspects of the CA168-I meter, highlighting its primary features and benefits in a concise manner.
a) Maximum current of 80A with Class1 accuracy
b) Anti Tamper features
c) Symmetrical (BS) terminal arrangement
d) Physical tamper switch
e) 20 Digit STS with encryption
f) Optical port for data bus output
g) Keypad with 4x3 configuration
Specifications:
|
Meter Type |
Prepayment Single Phase meter |
|
Standard |
SPLN D3.009-1 : 2010 |
|
IEC 62052-11:2003 ; IEC 62053-21:2003 |
|
|
Network |
Single Phase 2 wires |
|
Measuring Scope |
Active Energy |
|
Class Index |
Class 1 |
|
Reference voltage |
120V 60Hz & 220V, 230V, 240V |
|
Frequency |
50Hz/60Hz |
|
Operating Voltage Range |
- 30% Un to +15% Un |
|
Power Consumption |
<2W and <10VA |
|
Basic Current |
5 A |
|
Maximum current |
80A (optional) |
|
Starting Current |
0.2% Ib |
|
Operating Temperature range |
-25°C to +55°C |
|
Limit temperature Range to transport and storage |
-25°C to + 85°C |
|
Degree of Protection |
IP 54 |
|
Immunity to impulse voltage |
6kV |
|
Relative Humidity |
Up to 95% |
|
Meter Weight |
1.3 kg |
|
Meter constant |
1600 pulse/kWh |
|
User Interface |
12 digit keypad with audio feedback |
|
7 segment LCD with spacial symbols |
|
|
LED Indicator |
|
|
Optical probe |
