Split Type Digital Kwh Meter Single Phase DIN Rail Mounted Energy Meter
Single Phase Split type Din Rail Prepayment Meter
Single Phase Split type Din Rail Prepayment Meter CA168-S

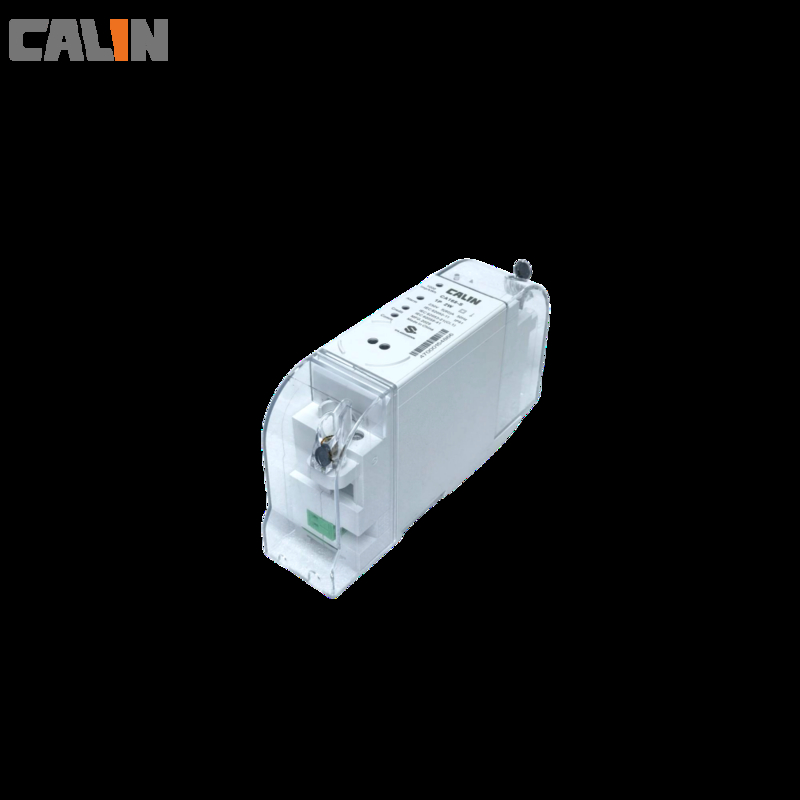

The CA168-S Meter is a split-type compact DIN-Rail mounted Class 1 accuracy single phase electricity meter built in 35mm international standard housing made of poly-carbonate flame retardant materials. Galvanic isolation wire is basic connection between the meter and keypad. Double circuit measurement and repay are also availale on request for reinforced tamper prevention.
Major Features
Split Configuration for Increased Revenue Pretection
The meter consists of two part, the MCU (Metering & Control Unit) and UIU (User Interface Unit). The MCU and UIU is linked via galvanically-isolated 2-wire communication cable. Power line carrier (PLC) and (RF) communication module is also available on request. The UIU is instralled within consumer's home, while MCU is installed in a meter cabinet away from consumers.
Utility benefit
Specifications:
| Nominal voltage Un | 220/230/240 V |
| Limited voltage | 70%~120%Un |
| Nominal frequency fn | 50-60Hz+5% |
| Basic current(Ib) | 5-10A |
| Maximum current(Imax) | 60-100A |
| Starting current(Ist) | 20mA |
| Active energy constant | 1000imp/kWh |
| Accuracy as Active energy to IEC62053‐21 | Class1.0 |
| Power consumption in Voltage circuit | <2W <8VA |
| Power consumption in current circuit | <1VA |
| Operating temperature | 25℃ to+70℃ |
| Storage temperature | 40℃ to+85℃ |
| Insulation level | 4kV rms for 1min |
| Impulse voltage withstand | 8kV, 1.2/50 μs |
| Air discharge | 16kV |
| Immunity to HF fields | |
| 80MHz to 2GHz with load | 10V/m |
| 100kHz to 1GHz without load | 30V/m |
| Fast transient burst test | 4kV |
| Meter shell Protection Rate | IP54(IEC60529) |
| Insulation System Classification | Protective Class II |
